Stock Machines

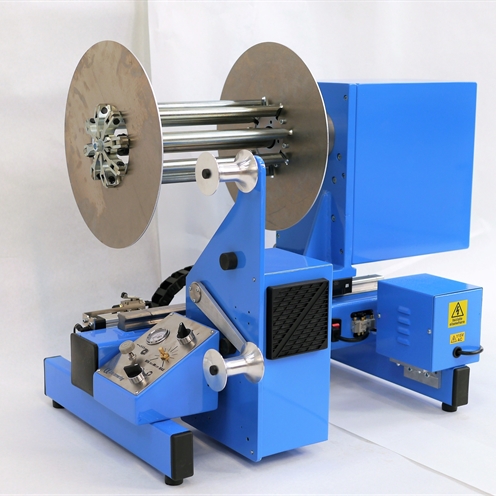

ALPHATRIM TWM-P
The ALPHATRIM TWM-P is a stand-alone unit which does not need any integration with the host slitter.
Package Diameter: 350mm
Package Width: 350mm
Rewind weight: 15Kg
Min width: 5 mm
Max width: 65 mm
Max speed: 150 MPM

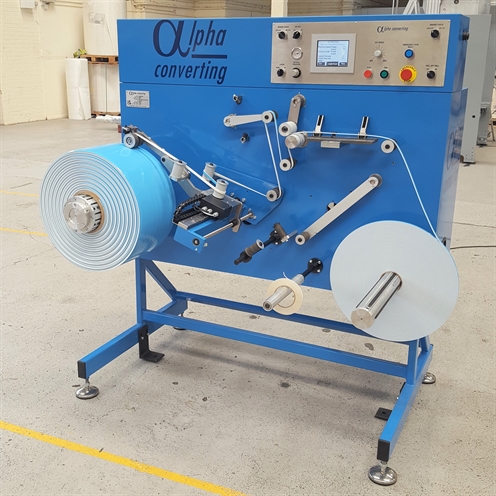

ALPHASPOOL - RSM
The ALPHASPOOL - RSM is a single headed spooler ideal for short production run or rework (gap winding capability)
Speed: 250 MPM
Slit width: 4 – 30mm
Material thickness: 10 – 10mm
Unwind roll diameter: 600mm
Unwind Core: 76.2mm / 152 mm option
Maximum spool width: 300mm
Maximum spool diameter: 400mm
Rewind core:76.2mm / 152mm Option
Splice table
ALPHAREEL
Driven Unwind: Shafted
Lift In – from the floor
Working width: 1600mm
Core: 76mm Air Shaft
Unwind diameter: 1000mm
Max weight: 1000Kg
Speed: 600 MPM

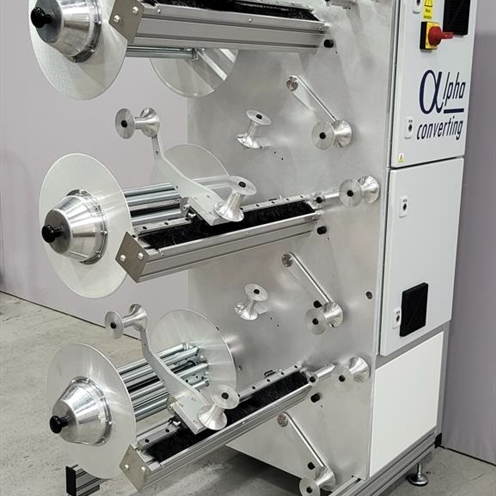

ALPHATRIM TWM-3 Head
Package Diameter: 350mm
Package Width: 350mm
Rewind weight: 15Kg
Min width: 5 mm
Max width: 65 mm
Max speed: 300 MPM
Option: 600 MPM
Coreless
ALPHATRIM TWE
Package Diameter: 350mm
Package Width: 350mm
Rewind weight: 15Kg
Min width: 5 mm
Max width: 65 mm
Max speed: 600 MPM
