Custom Built Unwind Rewinders
ALPHAREEL winders can be configured for any application requiring the unwinding or rewinding of a web.
Read more
Get in touch
Alpha Converting's engineering expertise in a wide range of material types and processes ensures the best winder for your application.
ALPHAREEL winders are of heavy duty construction for long life.
Examples:

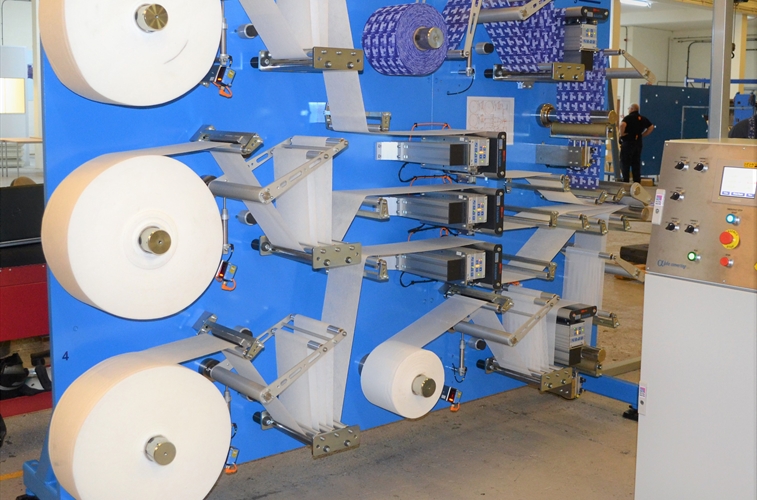

- Multi channel unwind stand for narrow web with closed loop tension control and web guiding on every winder. Quick release chucks for rapid roll change.
- Turret cantilevered unwind with flying splice web transfer for narrow web application.
Standard Features
- Custom design to suit manufacturing line
- Precision closed loop tension control
- Edge guiding (web guide)
- Quality engineered and manufactured in UK
Optional
- Shafted or shaftless
- Precision pneumatic brake or AC drive
- Automated roll handling
- Line guiding
- Multiple rolls
- Non stop operation
- Touch screen operator interface
- Almost anything!
Typical Specification
| ALPHAREEL Custom Built Winder | ||
| Web width | 1 to 3,500 mm | 0.04 to 140 inches |
| Roll diameter | 200 or 2,500 mm | 8 or 100 inches |
| Core diameter | To suit | To suit |
| Edge guide | Up to ±250 mm | Up to ±10 inches |
| Material thickness | 10 µm to 5 mm | 0.4 mils to 0.2 inches |
| Line speed (maximum) | 2000 m/min | 1,000 ft/min |
Typical Materials
| Film - OPP, PET, PE, PVC | Laminates | Paper |
| Non-woven | Textiles | Board |
| Medical | Copper | Aluminium |
| Packaging | Self adhesive | Label stock |
