Shafted Unwind Rewinders
ALPHAREEL shafted winders economically unwind and rewind a wide range of products with quick loading shafts to support the roll weight.
Read more.JPG)
Get in touch

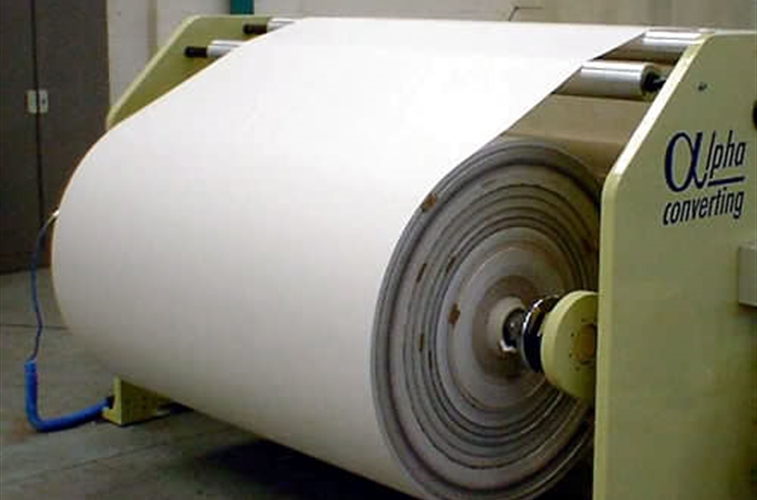

Shown with removable air inflated unwind shaft.
ALPHAREEL winders are of heavy duty construction for long life.

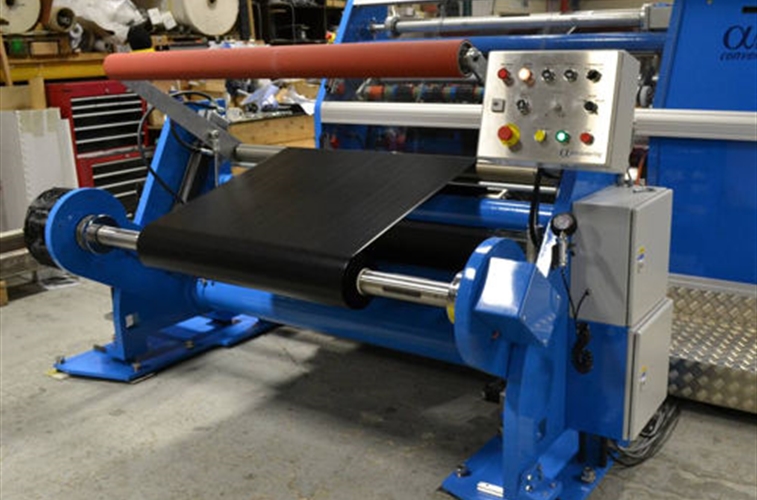

Examples shown:
- Braked unwind stand with floor pick-up, edge guiding, and peel-off roll.
- Driven rewind stand for precise tension control with rapid roll unloading direct to the floor.
Standard Features
- Quick release safety chucks
- Precision closed loop tension control
- Edge guiding (web guide)
- System integration with production line
- Quality engineered and manufactured in UK
Optional
- Pick up from the floor or roll cart
- Precision pneumatic brake or AC drive
- Coreless operation
- No hydraulics
- Line guiding
- Twin roll stand
- Non stop operation
- Touch screen operator interface
- Intermittent operation
- Layon roll (rewind only)
- Peel off roll (unwind only)
Typical Specification
| ALPHAREEL Shafted | ||
| Web width | 100 to 1,800 mm | 72 inches |
| Roll diameter | 300 to 1,200 mm | 12 to 48 inches |
| Core diameter | 76 or 152 mm | 3 or 6 inches |
| Edge guide | ± 75 mm | ± 3 inches |
| Material thickness | 10 µm to 5 mm | 0.4 mils to 0.2 inches |
| Line speed (maximum) | 300 m/min | 1,000 ft/min |
Typical Materials
| Film - OPP, PET, PE, PVC | Laminates | Paper |
| Non-woven | Textiles | Board |
| Medical | Copper | Aluminium |
| Packaging | Self adhesive | Label stock |
Related Products
Custom Built Unwind Rewinders
ALPHAREEL winders can be configured for any application requiring the unwinding or rewinding of a web.
Shaftless Unwind Rewinders
ALPHAREEL shaftless winders unwind and rewind a wide range of products without the need for shaft handling.
Cantilevered Shafted Unwind Rewinders
ALPHAREEL cantilevered winders for narrow web unwind and rewind a wide range of products without the need for shaft handling.

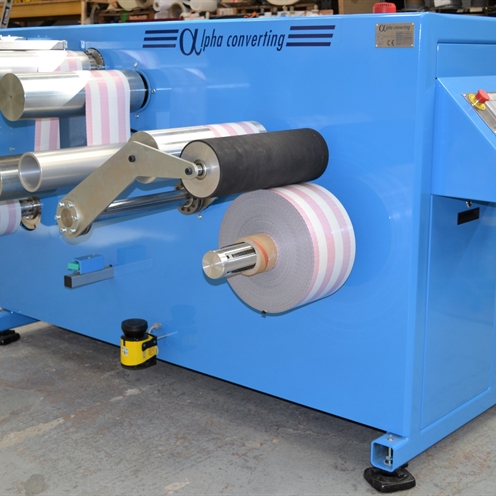

Salvage Rewinders and Inspection
