Centre Surface Slitter Rewinders

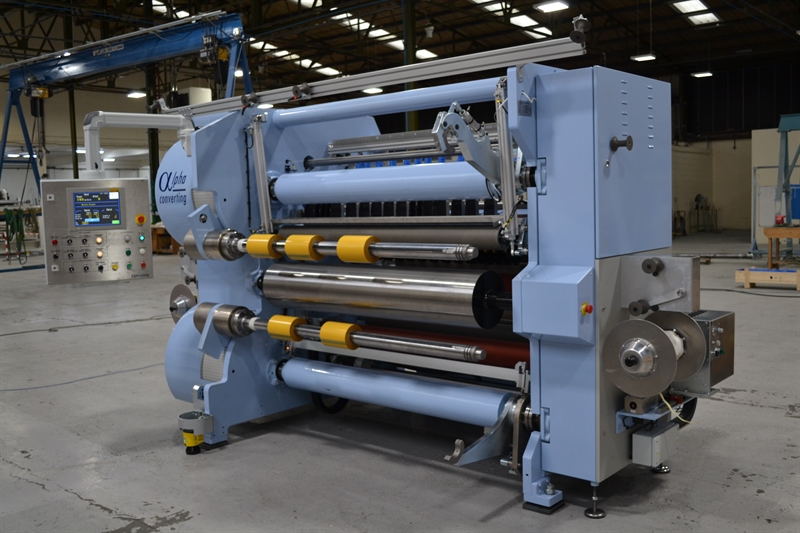

ALPHASHAFT centre surface winders with one or two shafts have short web paths for high productivity and control of narrow webs, typically used for paper, nonwovens, foams and pressure sensitive tapes.
Read more
The short web path from the slitting knives to the rewinds is common to all styles for accurate roll alignment. The surface drive rolls control the web tension precisely up to the rewinds for controlled rewinding tension up to the rewinds, even when winding narrow slit rolls.
Examples shown:
- Narrow width slitting on ALPHASHAFT with radial or linear tracking rewinds. Also available for nonwovens with fully cantilevered rewinds and mating unload trees.
- Linear tracking simplex centre surface winder for nonwovens and textiles. This compact machine efficiently delivers light slit rolls of the highest quality.
Standard Features
- Centre surface winding
- Precise tension control with torque controlled rewinding shafts
- PLC control with touch screen interface and comprehensive recipe and maintenance systems
- Closed loop unwind tension control
- Quality engineered and manufactured in UK
Optional
- Gap winding
- Spacer-less differential rewinding shafts
- Floating contact roll for sensitive products (SP)
- Automatic knife setting system
- Trim removal
- Powered roll stripping to trolley
- Lift out shafts
- Laser core positioning.
- Linear tracking.
- Turnkey supply, including packing, transport and start-up
- Higher line speeds - up to 1000 m/min (3,000 ft/min)
- Rewind unloading systems
- Differential or lock core rewinds
- Unwind tension control through AC drive system or precision air brake
- Medical or pharmaceutical production
- Simplex rewinding (Single shaft) for faster operation and reduced cost
Typical Specification
| ALPHASHAFT | ||
| Web width | 1,000 to 2,000 mm | 40 to 80 inches |
| Rewind diameter | 1000 to 1500 mm | 240 to 60 inches |
| Minimum rewind width | 50 mm | 2 inches |
| Rewind core diameter | 76 mm | 3 inches |
| Unwind diameter | To 1,800 mm | 70 inches |
| Material thickness | 25 to 500 µm | 1 to 20 mils |
| Line speed (maximum) | 600 m/min | 2,000 ft/min |
| Operator interface | 10" colour touch screen | |
| ALPHASHAFT COMPACT | ||
| Web width | 300 to 800 mm | 12 to 32 inches |
| Rewind diameter | 300 to 1000 mm | 12 to 40 inches |
| Minimum rewind width | 6 mm | 0.25 inches |
| Rewind core diameter | 76 mm | 3 inches |
| Unwind diameter | 1000 mm | 40 inches |
| Material thickness | 25 to 500 µm | 1 to 20 mils |
| Line speed (maximum) | 300 m/min | 1,000 ft/min |
| Operator interface | 6" colour touch screen | |
Typical Materials
| Paper | Laminates | Board |
| Non-woven | Core board | Label stock |
